Boxes.py

BottleStack

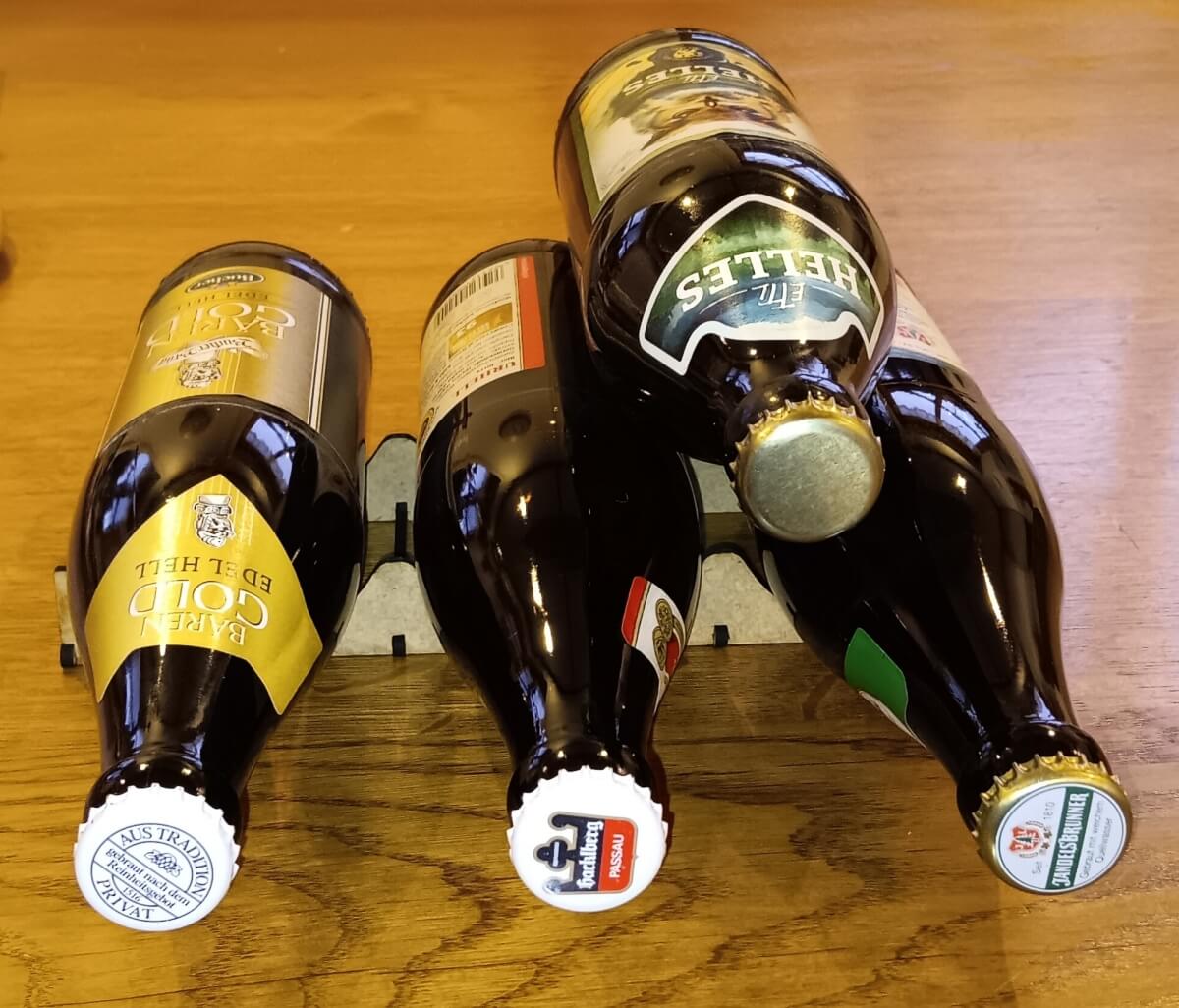

Stack bottles in a fridge

diameter

diameter of the bottles in mm

number

number of bottles to hold in the bottom row

depth

depth of the stand along the base of the bottles

double

two pieces that can be combined to up to double the width

thickness

thickness of the material (in mm) 🛈

burn

burn correction (in mm)(bigger values for tighter fit) 🛈

format

format of resulting file 🛈

labels

label the parts (where available)

reference

print reference rectangle with given length (in mm)(zero to disable) 🛈

tabs

width of tabs holding the parts in place (in mm)(not supported everywhere) 🛈

qr_code

Add a QR Code with link or command line to the generated output

inner_corners

style for inner corners 🛈

spacing

spacing around parts (multiples of thickness [: extra space in mm]) 🛈

debug

print surrounding boxes for some structures 🛈

When rendered with the "double" option the parts with the double slots get connected the shorter beams in the asymmetrical slots.

Without the "double" option the stand is a bit narrower.

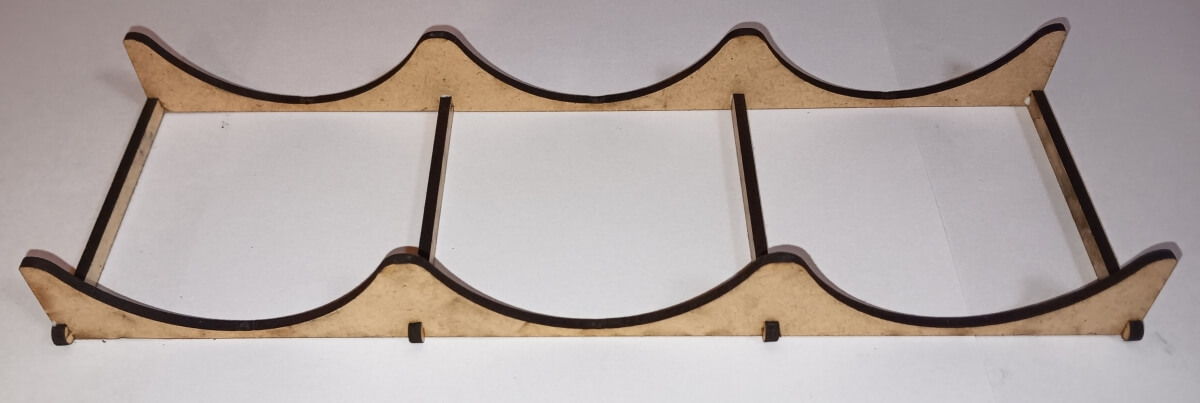

Empty stack
